RS485 to W-i-F--i/Ethernet Module Rail-Mount Serial Server Modbus MQTT Gateway, Allow RS485 to W-i-F--i, RS485 to Ethernet, Ethernet to W-i-F--i Converter Module, Support Transparent Transmission Mode

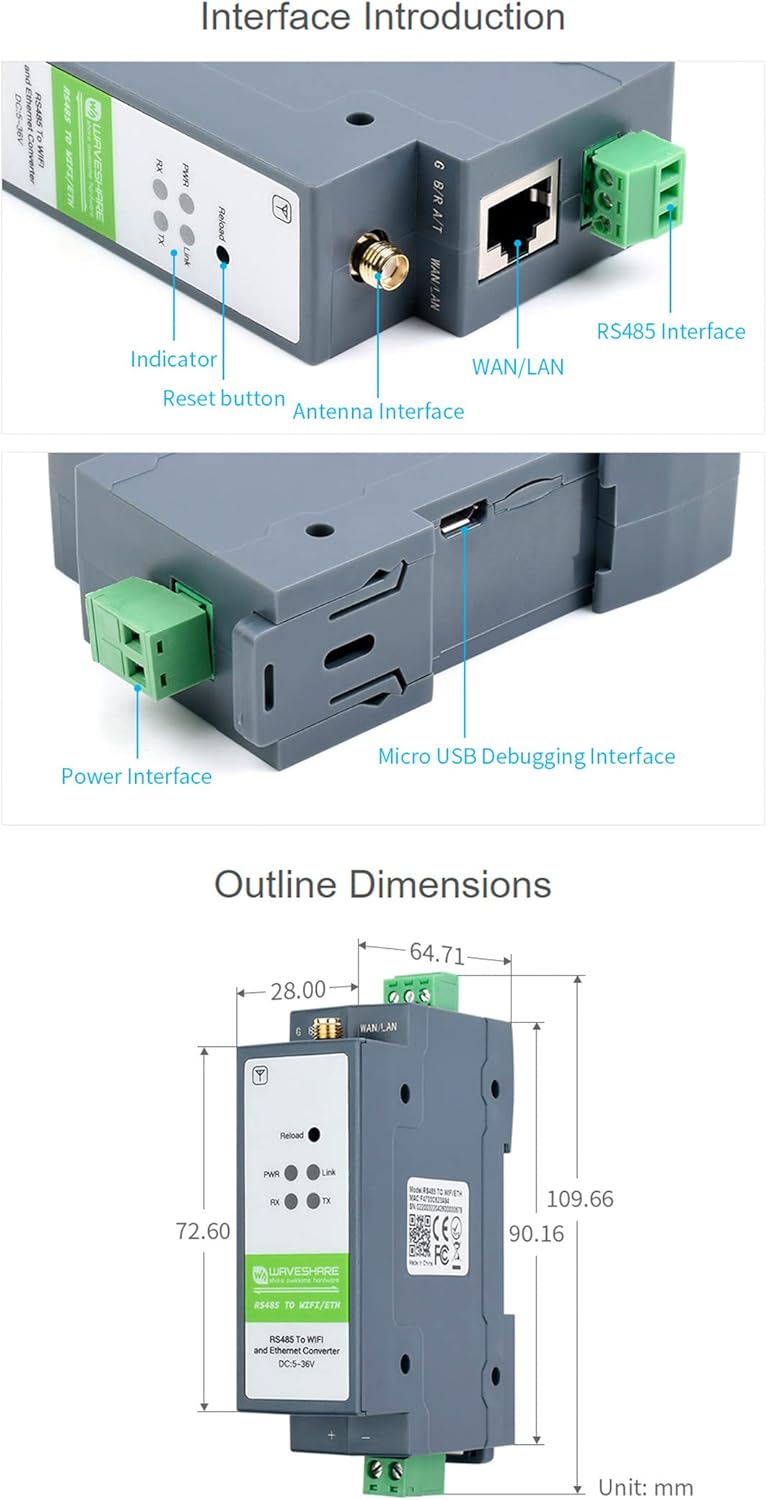

Specifications Outline Communication interface: RS485, screw terminal Power supply: 5 ~ 36V DC, screw terminal Case: PC + ABS, V0 flame retardant grade Dimensions: L × W × H: 109.66 × 28 × 64.71 mm Communication Ethernet: 10 / 100M auto-negotiation RJ45 connector W-i-F--i: 802.11b/g/n compliant Serial port|:RS485 interface (Anti-surge, Over-current protection) Wireless specification Frequency Band: 2.412 ~ 2.484 GHz Wireless network: Station / AP / AP+Station Mode Security mechanism : WPA-PSK / WPA2-PSK Encryption type: TKIP / AES Transmitting power: 802.11b: +19dBm (Max.@11Mbps). 802.11g: +18dBm (Max.@54Mbps). 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7). Receiving sensitivity: 802.11b: -89dBm (@11Mbps). 802.11g: -81dBm (@54Mbps). 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7). Serial specification Baudrate: 300 ~ 460800 bps Parity bit: none, odd, even, mark, space Data bit:5 ~ 9 bits Software Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT Configuration: host, web browser, serial AT command Communication method: TCP/IP direct communication, VCOM Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU Environment requirement Operating temperature: -40℃ ~ 85℃ Storage temperature:-45℃ ~ 125℃ Humidity range: 5% ~ 95% relative humidity Online Document/User Manual: //bit.ly/3D1DO2g Package Content RS485 TO W-i-F--i/ETH x1 Antenna x1 FAQ Question: Why can't the configuration web page be opened in the computer's browser and cannot communicate with TCP? Answer:Set the IP of RS485 TO W-i-F--i/ETH and computer to the same network address and different node address IP: For example, RS485 TO W-i-F--i/ETH IP is 10.10.100.254; computer IP is 10.10.100.253

• This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc.
• With RS485, W-i-F--i and Ethernet ports, the module can realize functions such as serial to W-i-F--i, serial to Ethernet, Ethernet to W-i-F--i and so on. Using screw terminals for power input, it supports 5~36V wide range power supply.
• Support Transparent Transmission Mode: Supports TCP Server / TCP Client / UDP Server / UDP Client. Serial Command Mode: The user sends data to the server according to the protocol. Send data to different servers without restarting.
• Support HTTPD Client Mode: After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server.
• Modbus Gateway support: Support Modbus TCP and Modbus RTU interconversion mode.
• AT command mode: The user can query the current status of the module, or set related parameters, by sending AT commands.
• Support MQTT function: Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.
