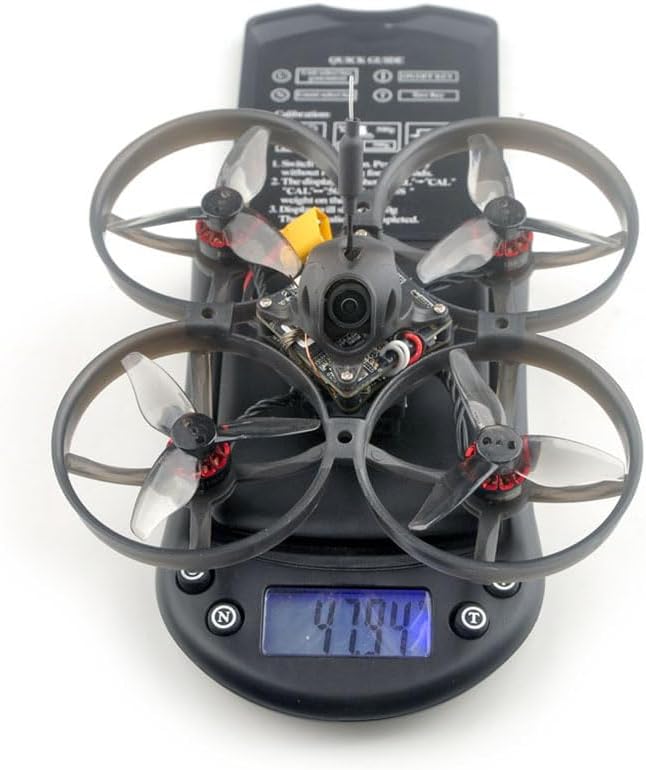

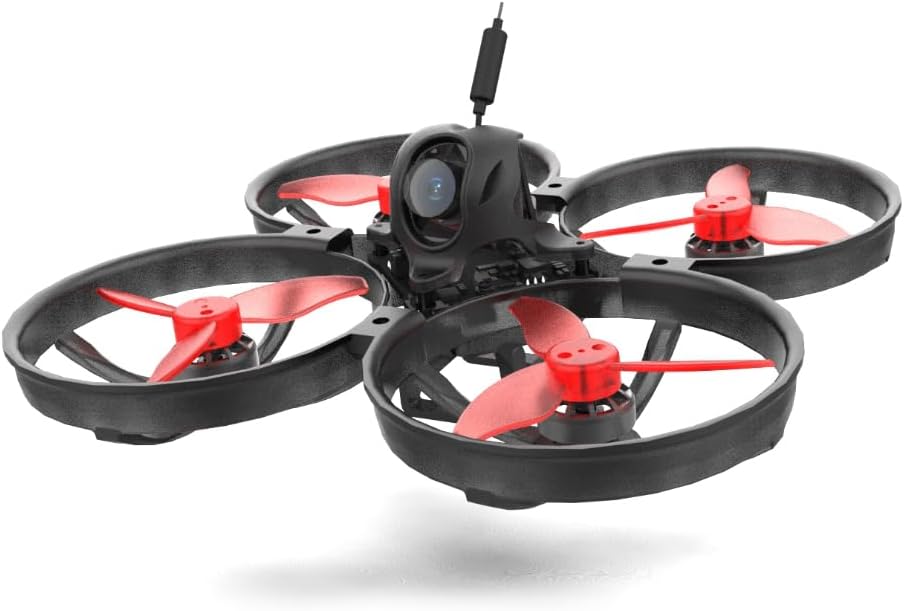

Happymodel HD Drone with Black Propeller for Adults Mobula8 2S 85mm Digital FPV Bwhoop CRAZYF405HDELRS RX EX1103 KV11000 12A 4-IN-1 ESC

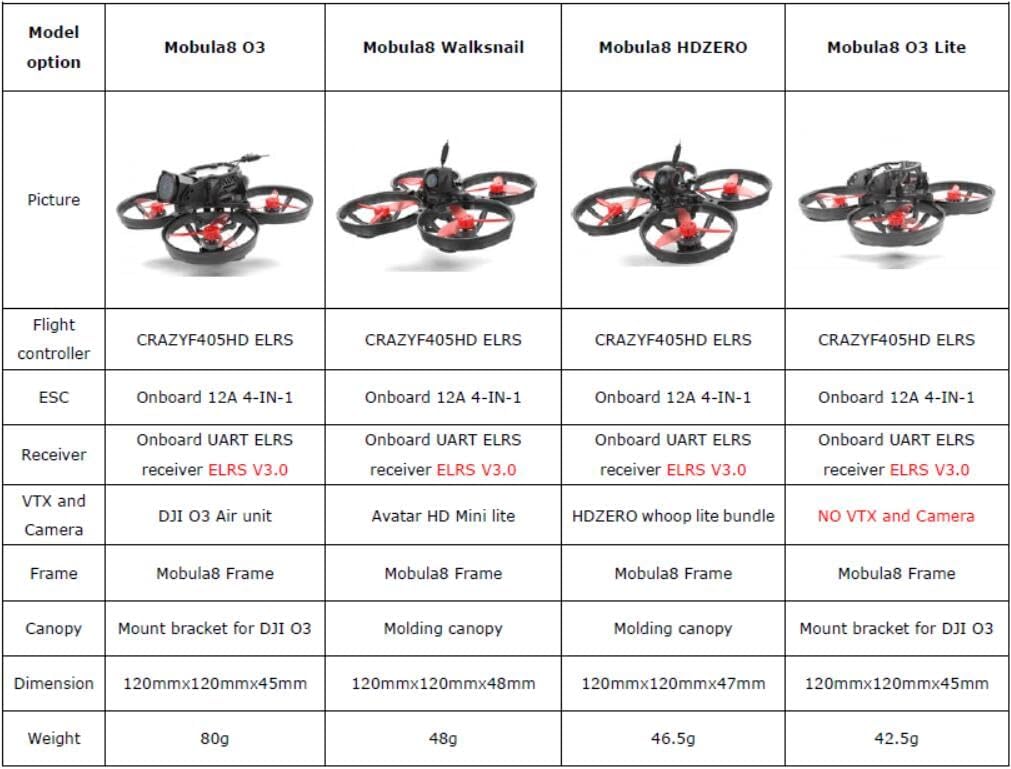

Built in UART ExpressLRS receiver and 12A 4-IN-1 BLheli_S ESC. The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With for D-JI O3, Walksnail avatar and HD-ZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience. Features: 1. Digital HD FPV experience 2. New CrazyF405 ELRS HD flight controller 3. Powerful and Smooth 4. UART ExpressLRS receiver 5. Built-in blackbox for Gyroflow and PID Tune Compatible with Walksnail versio: Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*6(Power in)JST0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G Recording 1080p/720p Weight 5.1g Operating Temperature -20-40℃ Channels 8 Wide Power Input 3.1V-5V Supported FC System Betaflight OSD Canvas mode Bitrate 25mbps 50mbps Latency Average delay 22ms Antenna IPEX HD-Zero Nano Lite Camera 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° HD-Zero Whoop Lite VTX 1-3S Input 25mW/200mW RF Output-SmartAudio Support 25.5x25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5x32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding)

• Mode: EX1103 KV11000. Configu-ration:9N12P. Stator Diamter:11mm. Stator Length:3mm. Shaft Diameter:Φ1.5mm. Dimension(Dia.*Len):Φ13.5mm*15.5mm. No.of Cells(Lipo):1-2S. Propellers: Material: PC. Pitch:2.3inchProps Dia:52.17mm. Center Thickness:5mm. Center Hole Dia:1.5mm. Aperture: F2.0. Shutter Rolling Rolling shutter. Min.Illumination: 0.001Lux. Dimensions 14*14*16mm. VTX: Model Avatar mini 1s module. Communication Frequency 5.725-5.850GHz.
• MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH). GYRO Sensor: BMI270 (SPI connection). Mount hole size: 25.5mm*25.5mm. Power supply: 1-2S battery input (DC 2.9V-8.7V). Built-in 12A(each) Blheli_S 4in1 ESC, Serial ExpressLRS 2.4G, BMP280 Barometer, 8MBp blackbox, voltage meter sensor , voltage meter scale 110, current meter sensor , current meter scale 470.
• Onboard 4in1 ESC: Power supply: 1-2S LiPo/LiPo HV. Current: 12A continuous peak 15A (3 seconds). Support BLHeli_S Bluejay firmware. Factory firmware: Bluejay ESC V0.19. Firmware target: Z-H-30. Default protocol: DSHOT300. When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200.
• Onboard UA-RT ExpressLRS 2.4GHz Receiver: Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz. RF Frequency: 2.4GHz. Antenna: enameled copper wire 31mm length. Telemetry output Power: <12dBm. Default firmware version: ExpressLRS V3.0.1. Firmware target: HappyModel EP 2400 RX. Could update firmware via ExpressLRS configurator.
• Compatible with D-JI O3 Air Unit: Works withFor D-JI FPV Goggles V2, For D-JI Goggles 2, and For D-JI FPV Remote Controller 2. D-Cinelike mode for Vivid Colors. Flagship O3+ Video Streaming. Customizable Canvas Mode. 155° Super-Wide FOV. 1/1.7-Inch Sensor. Compact in Size. Avatar lite camera. Image Sensor 1/2.7”1nch. Resolution 1080P/60fps,720P/120fps,720P/60fps. Ratio: 16/9 4/3. Lens 2.1mm. FOV: 170°.
